UP TO 2 BIMBA 3 1/2" PANCAKE AIR PNEUMATIC CYLINDERS FT-04-3.5-3

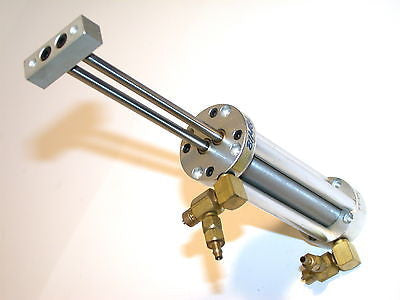

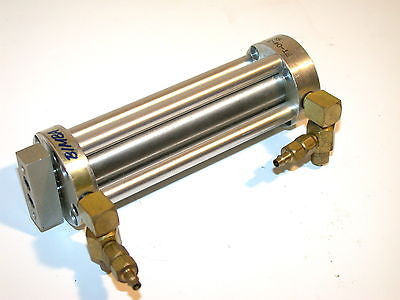

You are bidding on up to 2 Pneumatic Bimba Double Acting, Single End Rod Non-Rotating Pancake Air Cylinders with counterbored holes both ends mounting holes, Model # FT-04-3.5-3 with 3 1/2 Inches of stroke, 3/4" Bore, and a 3/16" piston. Cylinder measures 5" overall Length and 1 1/2" Diameter.
PLEASE NOTE: Each bid is for ONE Cylinder.
Flat-II nonrotating, double-acting cylinder provides the answer to applications where rotation cannot be tolerated and space is at a minimum. Nonrotation is achieved with dual piston rods and a rod end block that insures the rods work in tandem. Flat-II eliminates the need for external alignment devices, such as guides, rods and alignment posts or pins.
Body - 304 Stainless Steel
Heads - Anodized Aluminum Alloy
Piston Rod - Ground and Polished 303 Stainless Steel
Piston Seals - Buna N
Rod Bushing - Oil Impregnated Bronze
Rod Seals - Buna N O-ring
Rod End Block - Anodized Aluminum Alloy
Pressure Rating - 200 PSI Maximum (Air only) Force exerted is .4 times air pressure
Temperature Rating - From -20°F to +150°F (-25°C to +65°C)
For more information see:
http://www.bimba.com/Global/Library/Catalogs/Bimba%20Catalogs/FL_FlatCylinders.pdf#page=24
Bimba Manufacturing Company was founded in 1957 when Charles Bimba invented an inexpensive, non-repairable, stainless steel body air cylinder to replace small bore repairable cylinders. The product has since become an industry standard and Bimba remains the leading manufacturer of this type of cylinder.
I will fully guarantee these great cylinders.
Many more sizes available - see my other auctions.
Shipping in the Continental US is $5.90 - I have very competitive rates for our always welcomed International bidders.
Thanks for looking! If you have any question on this item please call us at 1-800-826-3433 (9 - 5pm Eastern).
Pay me securely with your Visa or MasterCard through PayPal!
