Condition: New – Open box

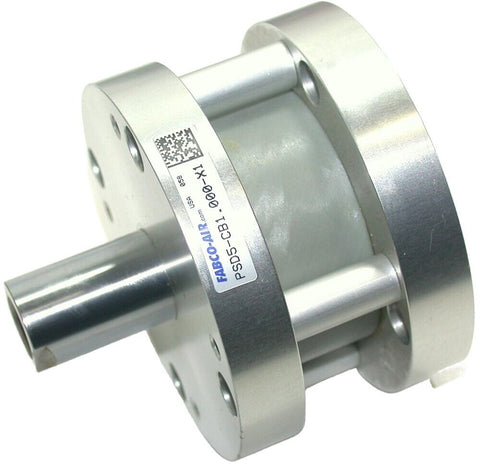

This is an Auction for a Double Acting Pneumatic Fabco-Air Pancake Air Cylinder- rod is 1 inch extended, Model #PSD5-CB1.000-X1 with 1" of stroke with a 3/4" piston - 2" Bore - unit was part of a project that was built and canceled - never completed or put in production.
Each bid is for ONE Cyliner.
Machined from aluminum bar-stock for Strength, precision & clean lines
Internally lubricated O-rings for Smooth operation & long life
Hard chrome plated stainless steel piston rod for Long life, corrosion resistance
Maximum operating pressure 250 psi
The aluminum cover is held in place with multiple plated screws for strength, rigidity, ease of modification for specific application requirements, and ease of access for maintenance should it be required
The one piece cylinder body and bushing support end is machined from solid aluminum bar-stock. This provides unequalled strength, rigidity, and piston rod support.
The guide pins pass through Polyurethane O'Ring seals and SAE660 bearing bronze bushings incorporated in the piston head. This combination provides no leak, precision guiding and long life.
Cylinder measures 2" High x 3 1/8" Diameter.
Force exerted is 3.14 times air pressure.
For over 40 years, Fabco-Air, Inc. has provided industry with high quality pneumatics at competitive prices. From cylinders to directional control valves, air presses to linear slides and more, Fabco is a name you can trust.
I will fully guarantee this great unit.
Many more sizes available - see my other auctions.
Shipping in the Continental US is $5.90 - I have very competitive rates for our always welcomed International bidders.
