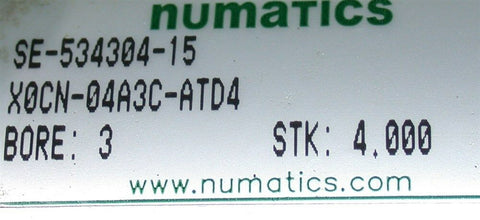

UP TO 4 NUMATICS TIE ROD TANDEM AIR CYLINDERS 4" STROKE X0CN-04A3C-ATD4
Each Bid is for ONE Cylinder.
Tandem cylinders -- This configuration provides nearly twice the force of an equivalent basic double acting cylinder. Two pistons are attached to a common piston rod. Ports 2 and 4 are pressurized to nearly double the extend force. Ports 1 and 3 are pressurized to double the retract force.
The C Series is a robust compact cylinder line that is designed to fit tight space requirements. The low profile design and variety of mounting options makes this cylinder line extremely popular. Furthermore, its unique style and diversity makes the C Series a one of a kind compact cylinder line.
Tube
The tube is hard coat anodized. The hard coating is an electro-chemical process, which produces a very dense surface of aluminum oxide. This surface has extreme hardness (60 Rc), excellent wear and corrosion resistance, and a low coefficient of friction.
End Caps
The end caps are accurately machined from (6061-T6) solid aluminum bar stock. They are anodized for corrosion resistance. Additionally, a recess on the piston-mating surface (at both ends) enables the air to work on a larger piston area for effortless breakaway.
Piston Rod
High strength steel (100,000 psi minimum yield) piston rod has a ground, polished, and chrome plated surface. This surface provides maximum life for both the rod bushing and the seals.
Features
4" of stroke
3" bore
To 250 psi
oversize 1" piston
Includes end of stroke sensor and air ports shown.
For more information see:
http://dev.thepneumaticstore.com/PDFs/cseries.pdf
Numatics Incorporated is a leading manufacturer of pneumatics and motion control products.
I will fully guarantee these great cylinders - Many more and types available - see my other auction.
Shipping in the Continental US is $9.90 - I have very competitive rates for International bidders that are always welcome.Thanks for looking! If you have any question on this item please call us at 1-800-826-3433 (9 - 5pm Eastern)
