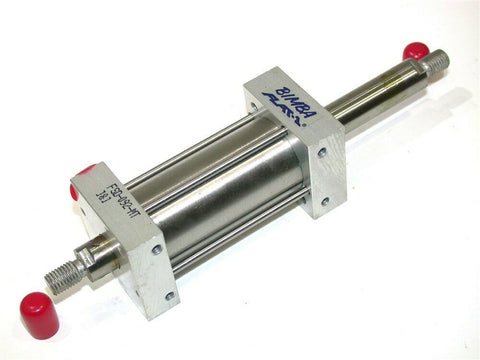

Up To 2 New Bimba 1" Stroke Double End Air Cylinders FSD-091-MT

  • $ 1990








You are bidding on up to 2 Brand New Pneumatic Bimba Double Acting, Double End Pancake Air Cylinders with rear and front Threaded mounting holes, Model # FSD-091-MT with 1 Inch of stroke, 1 1/16" Bore, and a 1/2" piston with male threads.

Each Bid is for ONE Cylinder.

Body - 304 Stainless Steel

Heads - Anodized Aluminum Alloy

Piston Rod - Ground and Polished 303 Stainless Steel

Piston Seals - Buna N

Rod Bushing - Oil Impregnated Bronze

Rod Seals - Buna N O-ring

Rod End Block - Anodized Aluminum Alloy

Pressure Rating - 200 PSI Maximum (Air only)

Force exerted is .9 times air pressure

Temperature Rating - From -20°F to +150°F (-25°C to +65°C)

Bimba Manufacturing Company was founded in 1957 when Charles Bimba invented an inexpensive, non-repairable, stainless steel body air cylinder to replace small bore repairable cylinders. The product has since become an industry standard and Bimba remains the leading manufacturer of this type of cylinder.

I will fully guarantee this great cylinder.

Many more sizes available - see my other auctions.

Shipping in the Continental US is $5.90 - I have very competitive rates for our always welcomed International bidders.
