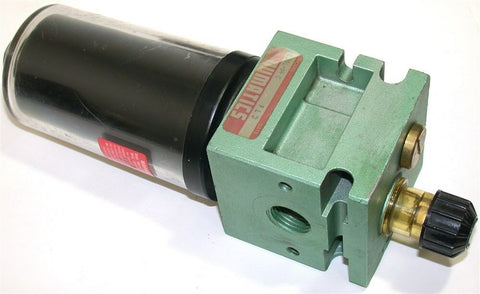

You are bidding on a Numatics 30 series High Flow Lubricator, Model #L30L-04C. The Port size is 1/2" NPT.
The lubricator is designed to inject oil aerosols into the airstream of a pneumatic circuit. As air flows from the regulator, some air is diverted from the main orifice and is allowed to flow through the fill under pressure bleed assembly and pressurize the bowl. This forces oil up the siphon tube and into the integral valve/sight dome. The oil film then drops through the valve and into the atomization chamber at a rate that is automatically proportional to the air flow. This virtually eliminates the need for readjustment.
Features and Specifications
Max. Pressure PSIG (BAR) 250 (17.2)
For more information visit:
( http://www.numatics.com/common/PDF/NumaticsFRLFlexiblok.pdf )
I will fully guarantee this great new unit with a cost of $200.
Shipping is $9.90 in the Continental US- I have very competitive rates for our always welcomed International bidders.
Many more sizes available - see my other auctions.
