Federal Pacific T4T45 45 KVA Transformer Dry Type 480V to 208/120V 3 Phase

Federal Pacific T4T45 45 KVA Transformer Dry Type 480V to 208/120V 3 Phase

  • $ 49000

Description

This Listing is for a Used Federal Pacific Transformer.
Model: T4T45

Specifications:
Make: Federal Pacific
Type: Dry Type Transformer
Condition: Used
KVA: 45
Phase: 3
Freq: 60 Hz
% IMP: 5.04
Primary Volts: 480V
Secondary Volts: 208Y/120V
Enclosure: Type 2
Insulation Class: 220°C
Rise: 150°C
Weight: 345 LBS

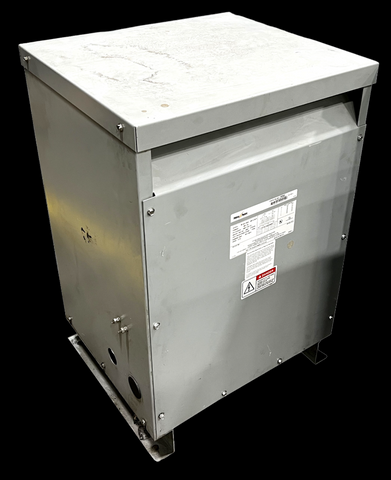

The transformer is exactly as pictured.
We will happily load your truck at no charge, or assist in planning the most economical delivery.
