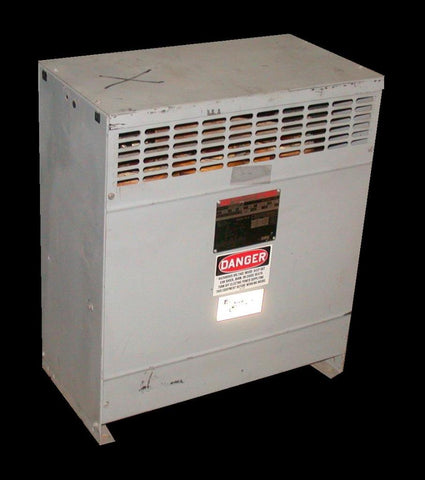

Federal Pacific FH27CEMD Transformer 27 KVA 460V High 230V Low Dry Type 60 Hz
Condition: Used
Brand: Federal Pacific
Color: Gray
Conversion Function: Step-down
Country/Region of Manufacture: United States
Current Conversion: AC to AC
MPN: FH27CEMD
Maximum Operating Frequency: 60 Hz
Mounting Style: Stand Alone
Number of Phases: 3
Power Rating: 27 KVA
Primary Current Rating: 33.9 A
Primary Voltage Rating (AC): 460 V
Secondary Current Rating: 67.7 A
Secondary Voltage Rating (AC): 230 V
Type: Dry Type
Unit Quantity: 1
Unit Type: Unit
UPC: Does not apply
Description
This listing is for a Federal Pacific Transformer.
Model: FH27CEMD

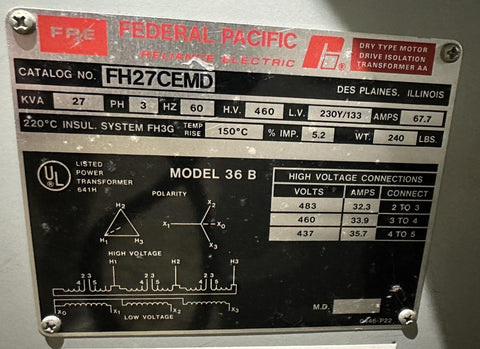

Specifications:
Make: Federal Pacific
Type: Transformer
Condition: Used
KVA: 27
HV: 460
LV: 230Y/133
Amps: 67.7
Temp Rise: 150C
Imp %: 5.2
Weight: 240 LBS
The item is exactly as pictured.
We will happily load your truck at no charge, or assist in planning the most economical delivery.
