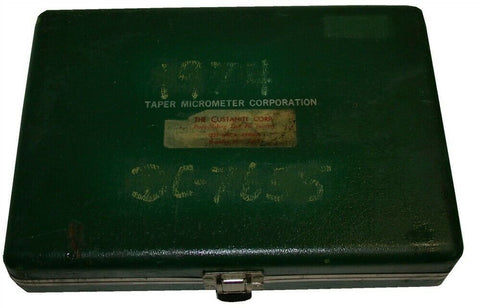

Custanite .0001" Precision Taper Micrometer W/case 4D 602
You are bidding on a Custanite adjustable .0001" Taper Micrometer, No. 4D 602. A taper micrometer includes a straight piece having two datum pieces for contacting a surface of a cone to establish a base line perpendicular to and passing the axis of the cone and coincident with a longitudinal axis of the straight piece, a higher contacting piece, a lower contacting piece, a higher contacting piece transporter in carrying the higher contacting piece a longitudinal groove of the straight piece and capable of movement along the longitudinal axis to contact a first point on the surface and a measuring device capable of moving the lower contacting piece along the groove to contact a second point on the surface for indicating a value which is two times the distance between the two points along the direction of the base line divided by the distance between the two points along the direction of the axis of the cone so that the value directly represents the taper of the cone. Readability Features * satin chrome finish - no glare - resists rust * Advanced sleeve design with staggered lines and distinct figures for precise and easy readability * Quick-reading figures - every thousandth numbered on inch tools * The combination ratchet and speeder for uniform pressure and quicker adjustment on all sizes .0001" Resolution * Quick and easy adjustment Furnished with case shown
We have lots of quality inspection tools available - see my other auctions.
Shipping in the Continental US is $9.90 - I have very competitive rates for our always welcomed International bidders.
