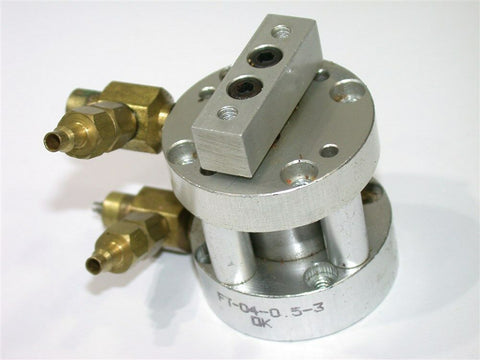

BIMBA PANCAKE 1/2" AIR PNEUMATIC CYLINDER FT-04-0.5-3
You are bidding on a Pneumatic Bimba Double Acting, Single End Rod Pancake Air Cylinders with rear and Front clearance mounting holes, Model # FT-04-0.5-3 with 1/2 Inch of stroke, 3/4" Bore, and a 3/16" piston. Cylinder measures 1 7/8" High x 1 1/2" Diameter. Flat-II nonrotating, double-acting cylinder provides the answer to applications where rotation cannot be tolerated and space is at a minimum. Nonrotation is achieved with dual piston rods and a rod end block that insures the rods work in tandem. Flat-II eliminates the need for external alignment devices, such as guides, rods and alignment posts or pins. Body - 304 Stainless Steel Heads - Anodized Aluminum Alloy Piston Rod - Ground and Polished 303 Stainless Steel Piston Seals - Buna N Rod Bushing - Oil Impregnated Bronze Rod Seals - Buna N O-ring Rod End Block - Anodized Aluminum Alloy Pressure Rating - 200 PSI Maximum (Air only) Temperature Rating - From -20°F to +150°F (-25°C to +65°C)
INCLUDES AIR PORTS SHOWN. For more information see: http://www.bimba.com/Global/Library/Catalogs/Bimba%20Catalogs/FL_FlatCylinders.pdf Bimba Manufacturing Company was founded in 1957 when Charles Bimba invented an inexpensive, non-repairable, stainless steel body air cylinder to replace small bore repairable cylinders. The product has since become an industry standard and Bimba remains the leading manufacturer of this type of cylinder. I will fully guarantee this great cylinder. Many more sizes available - see my other auctions. Shipping in the Continental US is $3.90 - I have very competitive rates for our always welcomed International bidders.
