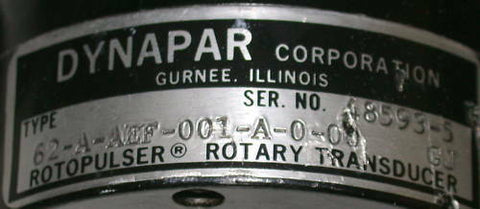

You are bidding on a Very Nice Dynapar Rotopulser Rotary Transducer, Model #62-A-AEF-001-A-0-00.

Retail cost of more than $700.00.

This is a very nice unit in excellent condition and it is fully guaranteed.

MECHANICAL:

Weight: 26 oz.

Speed Range: Up to 3600 RPM

Shaft Loading: Radial: 15 lbs. overhung; Axial: 5lbs.

Inertia: 170 gm-cm2

Starting Torque: 0.45 oz-in (0.30 oz-in for 1/4 in. dia. shaft)

Running Torque: 0.35 oz-in (0.15 oz-in for 1/4 in. dia. shaft)

Shaft Diameters: 1/4", 1/2" (-0.0003"/-0.0007")

ELECTRICAL:

Power Requirements: 5 to 15 VDC max.115 mA max. plus load requirements

Frequency Response: 50 kHz

Minimum Free Path: Between any A and B transition, will not be less than 12.5% of one full

electrical cycle. This includes effects of jitter,

phase and symmetry shifts.

For more information:

https://www.dynapar.com/uploadedFiles/Products/Incremental_Encoders/Series_60_Rotopulser.pdf
