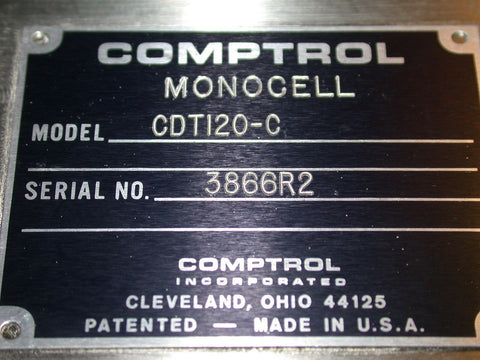

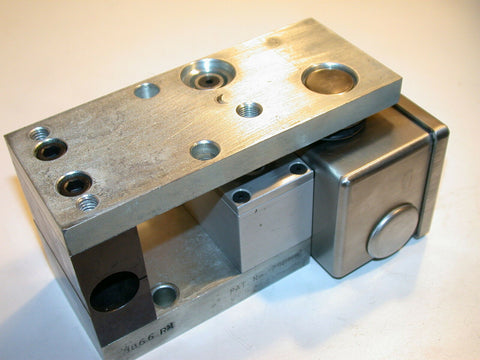

This is a Fixed Auction for up to 2 Brand New Comptrol Monocell Loadcells, Model CDT120-C.

PLEASE NOTE: Each Bid is for ONE Monocell.

Comptrol Monocells are precision linear displacement transducers especially designed for the measurement and control of web tension on continuous strip processing lines. These extremely accurate and reliable mechanical to electrical transducers convert the force of web tension into a high level electrical output signal, which is directly proportional to the web tension.

Monocells are simple to install and operate making it easy to convert most idler rolls to tension measuring rolls. They are unusually rugged and versatile, and incorporate a number of exclusive features which eliminate many of the problems associated with strain gage, hydraulic, or pneumatic loadcells.

Superior accuracy is achieved through the use of the Monocell patented C-Flexure pivot assembly which provides frictionless, mechanical deflection. The rugged loadcell structure, designed for overloads of 1000%, is machined from steel, and nickle plated. The C-Flexure is heat treated for durable, maintenance free operation. Monocells are factory calibrated to meet the requirements of each application.

They may be mounted in any plane around the axis of the roll, and may be operated in either tension or compression - and at any wrap angle. A mechanical zero adjustment at the Monocell allows the tare weight (pillow block bearings and the roll) to be zeroed, so that the Monocells measure only the force of the strip tension.

The primary conversion element between the mechanical force and the electrical output is a dc Linear Variable Differential Transformer (LVDT). The electrical elements of the LVDT are encapsulated and sealed, and are not susceptible to shock, vibration or tampering. LVDTs are provided with reverse voltage protection. Input and output circuits are isolated from each other, and from the chassis. This permits Monocells to be used in floating ground or ground return electrical systems.

The output signals from Comptrol Monocells may be used to drive analog or digital panel meters and/or used as feedback signals for controlling adjustable speed drives, brakes or clutches for critical tension control. Inherent in the design of the DcLVDT is a zero or null position with absolutely no deadband. The long term stability of the maintenance free LVDT gives the Comptrol Monocell operational characteristics and longevity unsurpassed by other loadcells used in similar applications.

Includes Instruction Manual.

For more Information see:

https://www.comptrolinc.com/index.php?option=com_content&view=article&id=296&Itemid=284

I will fully guarantee this great unit.

Shipping in the Continental US is $9.90 - I have very competitive rates for our always welcomed International bidders.

Thanks for looking! If you have any question on this item please call us at 1-800-826-3433 (9 - 5pm Eastern).
