New SensorSwitch 20A POWER PACK PP-20

  • $ 2900

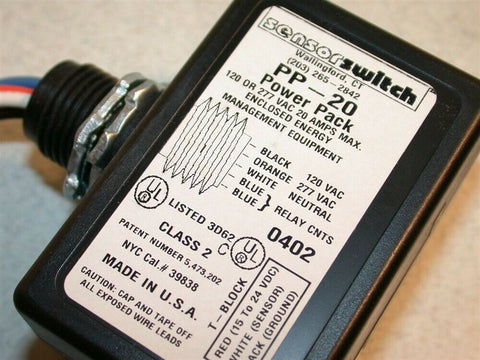

You are bidding on a Brand New in the Box, SensorSwitch 20 Amp Power Pack, No. PP-20.

Power Packs are the heart of the Low Voltage Sensor System. The PP-20 transforms 120, 240 or 277 Volts to class II 15 VDC to power the remote sensors. Utilizing Patented Relay Circuit Protection the PP-20 also switches the lighting load "On" and "Off":

Tested to over 400,000 cycles at rated load! Although Plenum Rated, the elongated mounting nipple allows for the PP-20 to be mounted either directly thru a 1/2 inch knockout in a junction box, or to be located inside an adjacent box for specific local code requirements.

Up to 14 sensors may be connected to one PP-20. Multi-circuit control can be handled by multiple PP-20's, or 2-Pole Power Packs (PP-20-2P) and Slave Packs (SP-20) may be configured. PP-20's can be wired continuously hot (line side), or on the switch leg (load side) without nuisance delays upon turn "On".

For more information see:

http://www.asihome.com/ASIshop/product_info.php?products_id=1837

I will fully guarantee this item.

Shipping in the Continental US is $7.90 - I have very competitive rates for our always welcomed International bidders.

Thanks for looking! If you have any question on this item please call us at 1-800-826-3433 (9 - 5pm Eastern).
Pay me securely with your Visa or MasterCard through PayPal!
