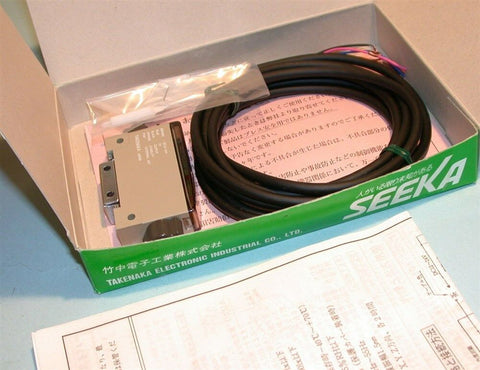

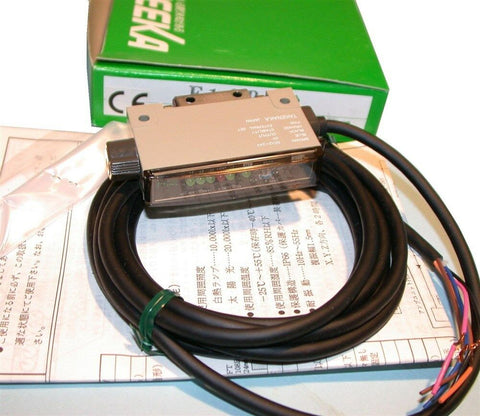

You are bidding on a Brand New Seeka Takenaka Fiberoptic Sensor with High resolution using an 8 bit CPU, Model No. F10R- 2 available.
Features
Easy "touch to teach" setting
Automatic sensitivity setting
Moving target setup
Remote setting possible
Accurate alignment with feedback system
Self diagnostic output
Fiber Optic Sensors offer great flexibility and can be easily incorporated into new or exisiting designs. The fiber optic cables are non-contact, miniaturized and can fit into remote, tight spaces that would be difficult for cube style sensors. Due to the use of separate fiber optic cables, these sensors can also be used in areas that would be hazardous for a regular sensor. Fiber optic sensors make it easy to use specific color LEDs such as Red, White, Blue, and Green to optimize the performance of your process to special conditions.
Specifications
Detection Throughbeam or diffuse reflection
Range 500mm
Operating mode Light on/dark on selectable
Response time 0.5mS
Output rating NPN/PNP 100mA at 40VDC open collector
Alarm output NPN/PNP 50mA at 40VDC open collector
External input contact or solid state
Illuminant for projection (wave length) -- Red LED (660nm)
Indicating lamp LIGHT: Entrance optical indicating lamp (green color LED) O.P: Operational indicating lamp (red LED)
Operation power source DC 12 ~ 24 V ±10% ripple 10% or less
Consumed electric current Below 40mA
Switch Light/write on, dark on Change-over Switch/timer Change-over Switch equipment
Teach function built in
I will fully guarantee this new sensor - new cost $250.
Shipping in the Continental US is $6.90 - - I have very competitive rates for our always welcomed International bidders.
