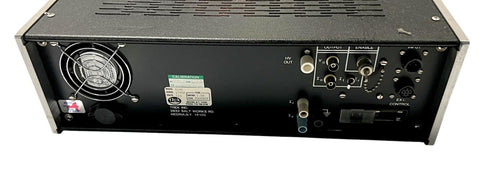

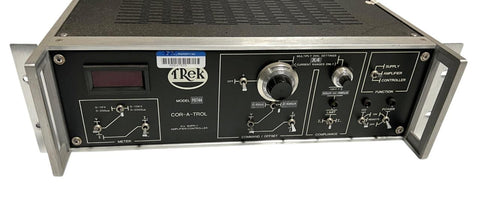

This Listing is for a Used Trek Cor-A-Trol High Voltage Power Supply, Amplifier, Controller.

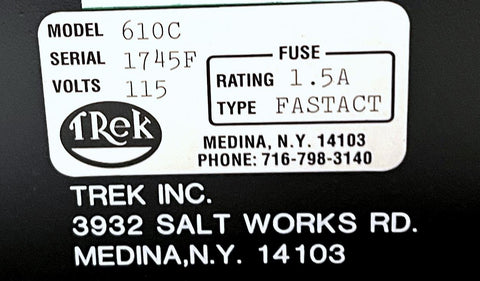

Model: 610C

 Item specifications:
Brand: Trek
Type: Cor-A-Trol High Voltage Power Supply, Amplifier, Controller
Condition: Used
Current Ranges: 0-10kV 0-2000uA

The 610C is a high voltage amplifier / supply / controller with an output voltage range of 0V to +/-10kV and an output current range of 0 to 2mA rms. It can be operated in any of six modes:

- As a high voltage amplifier, It amplifies an externally applied signal. Its gain is fixed at 1000V/V or 100V/V (switch selectable)

-As a high voltage reference supply, it responds to a front panel dial commanding an output voltage

- As a transconductance amplifier, it responds to an externally applied (voltage) signal to produce a proportional output current. The transconductance gain is fixed at 200 uA/V or 20 uA/V (switch selectable)

-As a current supply, it responds to a front panel dial commanding an output current

- As a high voltage controller, it is maintained as in the high voltage amplifier mode, but the input amplifier's input and feedback elements are uncommitted and available for configuration by the user

- As a transconductance controller, it is maintained as in the transconductance amplifier mode, but the input amplifier's input and feedback elements are uncommitted and available for configuration by the user
