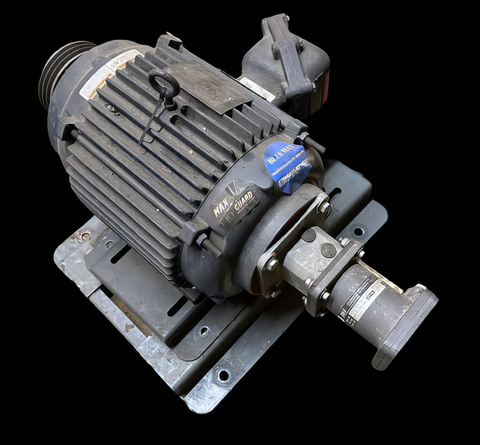

Marathon EL213THES8053BPL BlueMax Motor 5 HP 230/460V w/ BEI H38D-1024-ABZC
Condition: Used
Brand: Marathon Electric
MPN: EL213THES8053BPL
AC Frequency Rating: 60 Hz
AC Phase: Three Phase
Base RPM: 3600
Country/Region of Manufacture: United States
Current Type: AC
Enclosure Type: EPNV
IP Rating: IP54
Insulation Class: F (Max 311°F)
Model: EL213THES8053BPL
Nominal Rated Input Voltage: 230 V,460 V
Rated Load (HP): 5
Shaft Type: Straight
Unit Quantity: 1
Unit Type: Unit
UPC: Does not apply
Description

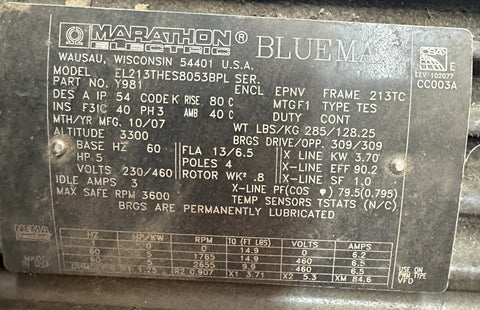

This listing is for a Marathon Electric AC Motor.
Model: EL213THES8053BPL
Specifications:
Make: Marathon Electric
Type: Motor w/ BEI Sensor
Condition: Used
Part No: Y981
Enclosure: EPNV
Frame: 213TC
IP54
Motor HP: 5
Electric: 230/460V, 60 HZ, 3 Phase
FLA: 13/6.5A
Poles: 4
Max Safe RPM: 3600

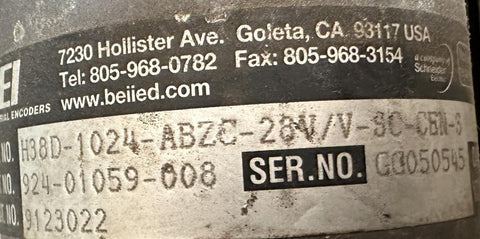

Includes BEI H38D-1024-ABZC-28V/V-SC-CEN-3 as pictured.
The item is exactly as pictured.
We will happily load your truck at no charge, or assist in planning the most economical delivery.
