Mitutoyo 543-683B LCD .0005 Absolute Digimatic S1012EB Indicator 0-0.5/0-12.7mm
Condition: Used
Brand: Mitutoyo
MPN: 543-683B
Indicator Type: Electronic/Digital Indicator
Type: DIGITAL INDICATOR
Model: S1012EB
#4-48 UNF Thread, 0.375" Stem Dia., Flat Back, 0-0.5"/0-12.7mm Range, 0.0005"/0.01mm Graduation, +/-0.0008" Accuracy

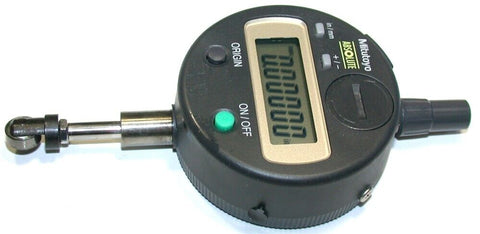

Mitutoyo 543 series LCD Absolute Digimatic Indicator ID-S displays inch/metric measurements in a choice of resolution and 0.5"/12.7mm measuring range. The indicator is automatically set to zero when it is turned on for measuring in either or both directions (plus or minus), and has a 0.375" diameter stem, a steel ball contact point with a 4-48 UNF (Unified National Fine) thread, and a flat back. The LCD display is automatically set to zero when powered on at the current spindle location for measuring in either or both directions, and has a sealed housing that is Ingress Protection (IP) certified IP42 for protection against dust and water. An audible alarm indicates low battery, scale contaminations, and data composition errors. The indicator has SPC (statistical process control) data output for data analysis (requires cable, not included). The indicator is powered by a new battery (included).This item is manufactured by the world's largest metrology company, founded in 1934 that creates the most advanced micrometers, calipers, indicators and other measurement tools in the world. I will fully guarantee this item that has a cost of $250. We have lots of quality inspection tools available - see my other auctions.
Shipping in the Continental US is $7.90-- I have very competitive rates for our always welcomed International bidders.
